Controller Area Network or CAN protocol is a method of communication between various electronic devices. It has significant use in the industry of automobiles. It defines a standard for efficient and reliable communication between sensor, actuator, controller, and other nodes in real-time applications. This provides a mechanism which is incorporated in the hardware and the software by which different electronic modules can communicate with each other using a common cable. CAN protocol is a message-based protocol, not an address-based protocol. All nodes in the system receive every message transmitted on the bus (and will acknowledge if the message was properly received). It is up to each node in the system to decide whether the message received should be immediately discarded or kept to be processed. The main aim is to design, development, and implementation of a CAN module using Verilog HDL. The intent is to show that the designed CAN module can replace a standalone CAN controller which occupies extra space in the system. Also implementing the CAN with the help of custom RAM is aimed at removing the need for FPGA specific RAM. The proposed design of CAN module is an integration of lower-level modules. The desired Verilog implementation of CAN module can help in simulating different systems at the design level instead of using physical ICs. The design includes a simple scheme that aims in reduction of circuit complexity and chances of hardware failure without requiring any extra logic circuitry.
Electronic devices have gradually substituted or supplemented many mechanical systems in vehicles and other systems over the last ten years. This is mostly due to environmental considerations that necessitate better operating conditions. Numerous sensors and electronic control units (ECUs) track various parameters to aid in the monitoring of device conditions. ECUs must exchange knowledge in order to manage machine performance effectively. Electronic devices today include hundreds of circuits and other electrical entities, to put it simply. The Controller Area Network (CAN) is a broadcast and differential serial bus standard that was designed with automotive applications in mind. This protocol provides powerful distributed real-time control while maintaining a high degree of security. A single wire links all of the vehicle's electronic devices, actuators, and sensors into a single circuit, allowing for high-speed data transfer between all components. CAN is also used in a variety of other applications, including home automation, medical equipment, and industrial control. The high-speed data transfer along with lower circuit complexity has made CAN the go to technology to be used especially in automobiles. Now constructing a CAN module in Verilog HDL enables it to very communication systems virtually. Also, during the implementation in hard-ware the Verilog implementation can reduce the use of an extra IC removing the extra space occupied and lowering circuit complexity. Synthesis of CAN module with custom RAM could make it independent of the type of FPGA used. Thus, the communication in multiprocessor environment can be made easier, faster and independent of the controllers used.
II. CONTROLLER MODULE
The improvement of CAN has seen upward growth since its inception in the automobile industry. It has rapidly spreading its wings into more and more industries making it much more valuable asset. But the use of an additional IC like MCP2515 consumes more space and increases the complexity of the circuit. The aim of the research presented in this thesis is to create a CAN network using Verilog HDL and with custom RAM that allows multiple applications to communicate with the network, while adding functionality and reducing wiring by interfacing this directly in the microcontroller. The chosen network must be able to reduce the amount of point-to-point wiring and also eliminates the need of explicit RAM on microcontrollers while preserving or enhancing the application's existing integrity, as well as provide improved connectivity to the entire system.
A master does not manage bus access in a CAN network; instead, any node can transmit as soon as the bus is idle. In a competitive usage scheme like this, it's likely that many nodes will want to fill the bus at the same time.
In other protocols, a case like this would result in messages being lost. The CAN protocol has developed an access mechanism that ensures that the message with the highest priority is granted access first, followed by subsequent messages without being destroyed. The data rate of up to 1 Mb/s and the CAN network's robustness are perhaps the two most appealing features of the CAN protocol. CAN defines two data lines that transmit the same information. The network is not hampered if one line is disabled or grounded, but noise immunity is reduced. The CAN protocol also has the ability to restrict bus access for network nodes that are malfunctioning. Because of these metrics, CAN can be used to manage real-time critical functions. CAN nodes are capable of both detecting and confining errors depending on their magnitude. By restricting bus access by faulty nodes, fault confinement effectively guarantees bandwidth for critical device details. The Controller Area Network protocol's advantages made it an excellent candidate for automotive networks.
A. CAN Protocol Controller
The chosen solution focuses on the design of a CAN controller with interfaces to connect to an external transceiver and microcontroller. The first step in the HDL design process is to specify all of the CAN controller's specifications.
The CAN controller is responsible for a variety of activities, including:
To relieve the microcontroller of time-critical activities, the CAN controller should perform all protocol-related functions in a separate entity from the host microcontroller.

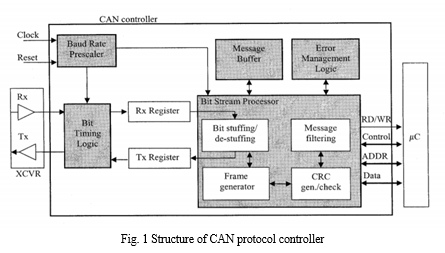

As shown in Figure 1, the CAN controller module can also be identified by functional blocks. As a result, each task can be modelled using a functional block in the CAN controller . The benefit of constructing the system as a set of fundamental blocks is that it relieves the designer of the responsibility of trying to construct the system all at once. Instead, each block is constructed separately and then assembled until all of the blocks have been completed.
Furthermore, each block can be validated individually, avoiding the need to troubleshoot a whole, complex device, as is the case with sound software engineering principles. The transformation from design definition to usable code is made easier by defining the specifications as a set of requirements or pseudo code.
III. HDL Implementation of CAN
The CAN controller core is being built from the group up, the following parts outline the specifications for moving to HDL. However, since the CAN core has already been established, the following specifications describe how it was built.
A. Bit Timing Logic
The first block that a bus message encounters is the bit timing logic (BTL). This block continually monitors the bus line input and handles the related bit timing according to the CAN protocol. When the BTL detects a transition from recessive to dominant, it synchronizes on that edge and reception of a new frame can begin.
The BTL provides programmable time segments to compensate for delays. Bit timing configuration is programmed in two separate registers. The bit timing logic is the first block that a bus message encounters (BTL). This block continuously tracks the bus line input and manages the CAN protocol-related bit timing.
When the BTL detects a recessive to dominant transformation, it synchronizes on that edge, allowing new frame reception to begin. However, as stated in Chapter 2, the sampling point is affected by propagation delays and phase changes. To compensate for delays, the BTL offers programmable time segments. Two registers are used to program the bit timing configuration.
B. Transmit and Receive Registers
The transmit and receive registers serialize messages to be sent and parallelize messages that are received. These registers hold the data stream bits to allow access to the data by the bit stream processor (BSP), which controls the loading and shifting of the registers.
C. Bit Stream Processor
The bit stream processor (BSP) performs several protocol tasks. The BSP translates messages into frames and frames into messages. Messages are stuffed and destuffed within the BSP and undergo CRC checking while in the BSP.
While the bus is idle, the bus is in the recessive state. Arbitration is initiated with a change from recessive to dominant via the start of frame bit. Every successive bit transmitted is compared with the bus level as illustrated in the state diagram in Figure 2. If the transmitted level matches the bus level, then the next bit is transmitted. If the bus level does not match the transmitted level, then the node either becomes a receiver or there is an error. Once a node has completed the arbitration process, the rest of the message is transmitted.
D. Frame Generator
The indexing of the data frame is known depending on the CAN format (standard or extended). When a result, as the received message is acknowledged, the indexing may be used to evaluate the frames that refer to it. The arbitration sector, for example, is made up of the first 12 bits in the data.
The SOF is the first bit in that field, followed by 11 bits that define the identifier field. With this format defined, the frame generator simply reads the message stream and begins indexing the message once the SOF is received. As a result, the first bit is saved in a register labelled SOF, while the remaining 11 bits are saved in a register labelled identifier. The same holds true for the remaining message and the corresponding fields related to the data frame.
E. Bit Stuffing and De-Stuffing
Bit stuffing is the process of inserting non-information bits into data to break up bit patterns to affect the synchronous transmission of information. The controlled deletion of the stuffed bits from a stuffed signal in order to recover the original signal that existed prior to stuffing of the data bits is the process involved in de-stuffing. The bit stuffing method is used on the SOF, arbitration field, control field, and CRC sequence frame segments. After detecting five consecutive bits of the same value, the transmitter inserts a complementary bit into the message stream. When getting a message, the stuff bits are extracted and the message is broken down into frames.
G. Error Management Logic
As it processes the data stream, the BSP is constantly checking for errors. When the BSP senses a breach in any of the mechanisms, it generates an error and informs the error management logic (EML). In response, depending on the situation, the EML increments either a receive error counter (REC) or a transmit error counter (TEC). Whether or not the error occurred during transmission or reception is unknown. The values of the error counter determine whether the controller is in an error-active, error-passive, or bus-off mode, according to the CAN protocol. The various error states allow error confinement, which ensures that a defective node does not block communications on its own.
Error confinement, which ensures that a defective node does not block communications along the bus, is possible thanks to the various error states. When errors are observed, a node in the error-active state participates in regular communications while also sending an active error flag. An error-passive node with a high error count can still participate in communications, but it can only send passive error flags if there are any more errors found. The bus communications are not disrupted by the passive error flag. Finally, a node in the bus-off state is not permitted to communicate with other nodes on the bus. A CAN node's error state diagram is shown in Figure 4.
After a reset, a CAN node is immediately placed in an error-active state. Once either one of the error counters exceeds 127, the node then enters the error-passive state.
H. Design of Custom RAM
The custom RAM used in this project is a two port 64x8 RAM which has separate read and write clocks along with read and write signals. Since it is a 64x8 RAM this can store 64 words of size 8 bits. Vector array named memory is used to store all these words. The RAM has 8-bit data input and 8-bit data output signals. Since it has 64 different locations 6-bit address lines are required to access the data from the RAM or to write data to the RAM. On the positive edges of the respective clocks (read clock, write clock) the corresponding operations will be performed if the read signal / write signal is enabled. This custom RAM is integrated to FIFO as well as BSP modules.I
IV. RESULTS AND DISCUSSIONS
The CAN controller core was simulated after the synthesis was completed. A testbench was used to model the configuration of the CAN controller. A testbench is a hierarchical top-level model that instantiates a desired model, the system under test, and other variables. The model is driven by a collection of test vectors, and the model's responses are generated. The testbench created a CAN controller core and then constructed a CAN message with one data byte for the purposes of this thesis. The messages were then sent out, and the CAN controller received them, which were then placed in the receive queue. FIFO has been debated.
The following preliminary findings were obtained using the ISE design suite environment. A CAN node transmits a message in its configuration with the receiver line connected to the transmitter line to enable self-reception of the transmitted message. This simulation will measure the function of the CAN node.
1. Simulation of Registers
A register is implemented implicitly with a register interference. During logic synthesis, the compiler automatically inserts an instance of register and connects it as specified in the procedural program code. We can also implement register explicitly with module instantiations.

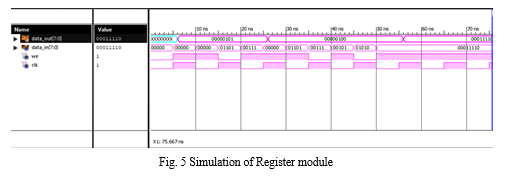

The waveform of CAN register module is shown in Fig.5 and the corresponding console was obtained. From the simulation result, we can see the output of Register module for given 8-bit inputs. Hence, the obtained output matches expected output. Register data are used as variables in procedural blocks. They store logic values only. Here it is disguised as the given input data and the obtained output data are same. For every 5 seconds the input signals data has been changed and the corresponding output data signals have been achieved accordingly. The register elements cannot be connected to the output port of a module instantiation.
???????2. Simulation of Inverse Bit Order (IBO) Module
Inverse Bit Order has been obtained for the given input data bit order. Thus, the bit inversion using Inverse Bit Order module inverses the input bit order which leads to inverted bit order for the given input data.

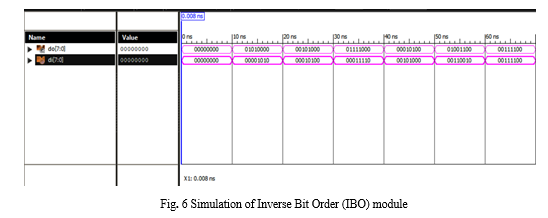

The waveforms of the Inverse Bit order module shown in Fig. 6 and the corresponding console has been verified. From the simulation result, we can see that the output of the Inverse Bit order module for the given input 01010000 and obtained corresponding output is 00001010.
???????3. Simulation of First in First out (FIFO) Module
It refers to a FIFO design where data values are returned to a FIFO buffer from one clock domain and the data values are read from the same FIFO buffer from another clock domain, where the two clock domains are asynchronous to each other.
The waveforms of the Simulation of FIFO module shown in Fig. 7 and the corresponding console has been verified. From the simulation result, we can see that the output of the Simulation of FIFO module for the given input 00001010 and obtained corresponding output is 00001010.
???????4. Simulation of Bit Timing Logic (BTL) Module
The waveforms of the Simulation of Bit Timing Logic (BTL) module shown in Fig. 8 and the corresponding console has been verified. From the simulation result, we can see that the output of the Simulation of Bit Timing Logic (BTL) module for the given input rst = 1 rx = 0 tx = 1 baud_r_presc = 56 sync_jump_width = 1 time_segment1 = 3 time_segment2 = 1 triple_sampling = 1 rx_idle = 0 rx_inter = 0 transmitting = 1 transmitter = 1 go_rx_inter = 0 tx_next = 1 go_overload_frame = 0 go_error_frame = 0 go_tx = 1 send_ack = 1 node_error_passive =0 and the obtained corresponding outputs are sample_point=0 sampled_bit=1 sampled_bit_q=1 tx_point=0 .
???????5. Simulation of Cyclic Redundancy Check (CRC) Module
The test bench has been designed with data input that presents a stream of data which varies with time pulse. Whenever the CRC has to be reset the initialize signal is made high. The stream of data in test bench is passed by keeping the enabling signal high.
The waveforms of the Simulation of Cyclic Redundancy Check module shown in Fig. 9 and the corresponding console has been verified. From the simulation result, we can see that the output of the Simulation of Cyclic Redundancy Check module for the given input stream of data the CRC module has performed the necessary mathematical calculations and generated the corresponding CRC for the message signal.
???????6. Simulation of Acceptance Check Filter (ACF) Module
The waveforms of the Simulation of Acceptance Check Filter module shown in Fig. 10 and the corresponding console has been verified. From the simulation result, we can see that the output of the Simulation of of Acceptance Check Filter module for the given input20clk=0 rst =0 id = 6974 reset_mode = 0 acceptance_filter_mode = 0 extended_mode=0 acceptance_code_0=39, acceptance_code_1=69, acceptance_code_2=57, acceptance_code_3=63, acceptance_mask_0=42,acceptance_mask_1=15 acceptance_mask_2 = 29 acceptance_mask_3 = 28 go_rx_crc_lim = 0 go_rx_inter = 0 go_error_frame = 0 data0 = 89 data1 = 52 rtr1 = 0 rtr2 = 0 ide = 0 no_byte0 = 0 no_byte1 = 0 and the obtained corresponding output id_ok=1.
V. FUTURE SCOPE
Future scope of the work includes improving the transmission speed and security of CAN design by using enhanced methods and interfacing with indigenous processors like Shakti, which rely on RISC-V architecture can be a competitive model for other processors.
The Addition of custom RAM to the design made the CAN module more invincible, as it can be implemented on any FPGA or microcontroller without the need of any explicit RAM. The proposed architecture of the design has been studied from various sources. This design implementation works in count of three steps. In the first step the can module has been disintegrated into functioning sub blocks: Bit Stream Processor, Bit Timing Logic, Cyclic Redundancy Check module, Acceptance Check Filter, First in First Out module, Inverse Bit Order and registers. In the second step a custom RAM of size 64x8 is designed with separate signals for read and write using Verilog HDL which is integrated in FIFO and BSP. In the final step of the design all the Verilog implementations of the sub-blocks are first synthesized and simulated and then integrated together in the top-level module that forms the CAN module. The significant reduction in the proposed architecture offers a great advantage in the reduction of area and therefore the complexity. Thus, the proposed design of CAN is more-handy in virtual simulations. The potential applications of this CAN equipped with custom RAM fall mainly in areas where there is strict requirement on accuracy and low space consumption. The Verilog implementation of CAN module helps in implementing CAN through FPGAs thereby reducing the cost of an extra IC and the chance of failure of the system due to the IC. The methodologies and results presented in this thesis suggest a promising approach for the design of CAN and integrating custom RAM to it.
