Authors: Prof. Dr. Emad Y. Tanbour, Prof. Philip Rufe
DOI Link: https://doi.org/10.22214/ijraset.2023.48702
Certificate: View Certificate
This paper, a continuation paper to the work presented at a previous ASEE conference as a \\\"Pilot\\\" planned research , discusses the research results of integrating virtual reality (VR) in a Mechanical Engineering Senior Capstone Course. The paper discusses the layout of the VR lab, its CAD software and hardware integration components that facilitated the immersive experience of virtual prototyping, and the effectiveness of utilizing virtual prototyping as a substitute for rapid prototyping during early stages of engineering design. The paper also provides benefits and challenges of using VR technology and recommendations for its successful implementation in a capstone engineering design class.
This paper, a continuation paper to the work presented at a previous ASEE conference as a "Pilot" planned research , discusses the research results of integrating virtual reality (VR) in a Mechanical Engineering Senior Capstone Course. The paper discusses the layout of the VR lab, its CAD software and hardware integration components that facilitated the immersive experience of virtual prototyping, and the effectiveness of utilizing virtual prototyping as a substitute for rapid prototyping during early stages of engineering design. Additionally, benefits and challenges of using VR technology and recommendations for its successful implementation in a capstone engineering design class will be presented.
The use of virtual reality (VR) in engineering education is expanding due to the widespread utilization of VR in industry. There is evidence that constituents of engineering programs across the globe are demanding VR literacy in engineering curriculum. VR has been extensively used in product development visualization as a fast substitute to rapid prototyping . More emphasis has been observed in the past 20 years in utilizing VR in product marketing and voice of customer surveying.
The utilization of VR spans over a wide spectrum of sophistication. From head-mounted low-cost VR systems to more upscale head mounted displays with advanced on-board computing and wider field of view, to passive rear projection VR walls, to active VR rear projection walls and enclosures. The VR labs utilized in academic and industrial settings are also varying in user experience sophistications. From completely non-tracked user VR to fully optically tracked immersive VR experience. In the early 2000’s, basic graphic curriculum was reported to be using VR as reported in
Schools of engineering around the globe are integrating VR into curriculum enhancement and delivery methods. For example, architectural engineering design education has shown a dramatic shift in utilizing VR. Due to the abundance of massive architectural CAD content, VR simulations of architectural content has proliferated into design studios and architectural design schools . Other disciplines of engineering, such as chemical engineering, are catching up and showing promising practical benefits of utilizing VR in education as reported in .
VR is also seeing increased utilization in the field of consumer products development, voice of the customer and consumer usage, and experience data collection . As it has been a very feasible simulation platform for aviation applications, VR has also penetrated the flight simulation and training market . Consumer behavior and perception of digital consumer products was also benefiting for from VR technology . VR has gone as far as probing virtual store emotional state and store attractiveness as recently reported in .
The most challenging aspects of adopting VR in industry and in engineering design education, is the fidelity (visual quality) of the VR content as displayed in VR environment. The higher the fidelity, the higher the end-user satisfaction and viability of VR as a design review and visualization tool . In the following parts of this paper, the adoption of active and immersive VR system in an engineering design capstone class will be presented.
II. Background on Mechanical Engineering Capstone
The undergraduate Mechanical Engineering program is one of several newly introduced engineering programs in the GameAbove College of Engineering and Technology at Eastern Michigan University (EMU). The College has five major priorities including increasing the College’s research and teaching profile in the emerging fields of autonomous systems, robotics and mobility cybersecurity, sustainability, virtual reality applications in manufacturing and smart living. The Mechanical Engineering senior capstone course at EMU is a sequence of two 3-credit hour courses delivered fall/winter in the senior year.
The two-course Mechanical Engineering Capstone sequence is focused on applying design of mechanical, electromechanical, thermo-fluid and energy systems, and devices that introduce a new problem-solving approach or innovate a capability that improves peoples’ lives. Students are allowed to select from a set of Department-proposed and industry-sponsored projects. Students work in teams of three to five members depending on the expected scope of the capstone project. The establishment of the 1500 square feet VR Lab in the College enhances the access to research tools in VR field for both teaching and research, hence fulfilling one part of the priorities of the College. The VR Lab within the College attracted external equipment funding that facilitated expanding the three-wall system into 4-wall system. The Mechanical Engineering program is a fairly new program and is growing very rapidly. It is expected to offer the capstone sequence in multiple sections of 25 to 30 students in the next two years. Currently, the capstone sequence is being delivered with six capstone projects in the current cohort.
The capstone sequence provides a holistic umbrella to emphasize and apply advanced engineering design knowledge gained during junior year and continued to be learned during senior year. Initially, for the first three cohorts, the capstone sequence utilized the following methods for student prototyping.
The utilization of VR in place of physical prototyping using a machine shop or fabrication shop started during the fourth cohort of Mechanical Engineering senior capstone classes. Students progress from building conceptual designs, to intermediate detailed designs, and finally detailed designs using CAD tools available in the curriculum.
The VR lab in the Game Above College of Engineering and Technology is a 1,500 square foot facility that includes a three rear projection rigid screens, 14ft wide by 8.5 ft high. The three walls are arranged into a U-shape as shown in Figure 1. A forth wall is a front project wall represented by the floor. The environment is equipped with four 3D active stereoscopic projectors and nine high end optical tracking cameras to facilitate immersive experience. The environment is also equipped with sophisticated special pointing and user interaction hand-held device. The VR environment is supported by the following software enablers:
The VR Lab has become an integrated part of the ME capstone curriculum during the past two cohorts. Students use the VR Lab as a meeting place to conduct weekly design review sessions. The utilization of the VR lab to is in its experimental phase but has proven effectiveness and widely preferred by ME students over the flat screen design visualization and a valuable precursor to 3D printing.
The process to make CAD content VR-ready has been optimized by many years of VR system integration experience of faculty and graduate students at EMU. The process starts with exporting CAD content into a game-engine compatible format. In our case, to be compatible with Unitiy3D game engine software. The CAD content is then configured in Unity3D and animation and rendering aspects are added in the Game Engine software. The file is then exported into the VR-enabler software which transfers the content to the 3D digital stereoscopic rear projection hardware. Students wear LCD shutter glasses that are optically tracked by an optical tracking system of nine cameras to produce VR content that is immersive. Students use hand-held interaction device to maneuver and walk through the VR content. Figures 2, 3, and 4 show students’ interaction with the VR-ready content of their capstone design.
To objectively determine the value of VR to replace conventional or rapid prototyping early in the design process for capstone courses, a study was conducted using ME students in the first semester of the two-semester capstone sequence in Fall 2022. The study probed information related to tying VR effectiveness to the attainment of the course learning outcomes of the Capstone class. The study included a survey which probed responses of students to the following on a scale of strongly disagree, disagree, neutral, agree and strongly disagree.

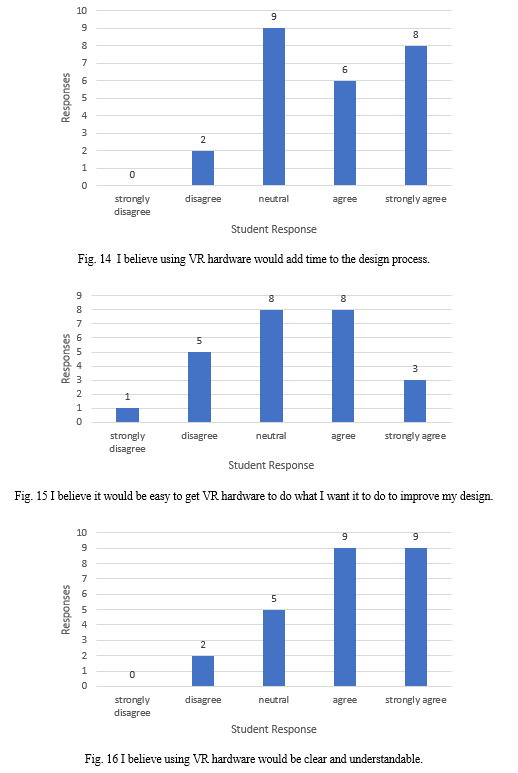

Below are selected results from the study based on student responses to using VR in their capstone design course. There were 25 total responses.
The data demonstrates that students had a good experience using VR and achieved a moderate level of success. In addition, they found it useful for engineering design. Interesting, however, students did not view using VR to improve their design as easy. They also viewed that becoming skilled at VR would not be easy. Additionally, student responses were mixed regarding their intention or desire to use VR in the future for engineering design projects. In general, the data supports that using VR in the early stages of engineering design capstone classes and during weekly review meetings is of value. It can also postpone physical prototyping until later stages of the design process. Based on the data, additional VR training for students is needed to help the overcome challenges using VR. Additionally, a further, more detailed study is needed to determine the exact areas of VR that students are having difficulty with. This will allow better and more targeted future training and possibly impact how students feel about using VR in the future. In looking forward to the increased use of VR in student capstone courses, pedagogical planning for student success in VR should incorporate the following factors. 1) Ability to Transform CAD content of capstone projects into VR-ready content within a feasible time to allow a cohort of students to utilize the VR lab as a weekly design review medium. 2) Ability to provide adequate fidelity of the visualized content using the framework of VR content fidelity developed by Al-Jundi and Tanbour 3) Ability to simulate animated mechanisms as applicable to capstone project that include moving parts 4) Ability to replace rapid prototyping and 3D printing needs for capstone until the last stages of design review process per semester.
 Tanbour, E. Y. (2022, March), Effectiveness of Utilizing Immersive Virtual Reality for Weekly Design Review Team Meetings in Capstone Mechanical Engineering Courses Paper presented at 2022 ASEE - North Central Section Conference, Pittsburgh, Pennsylvania. https://peer.asee.org/39242  N. Harz, S. Hohenberg, and C. Homburg, “Virtual Reality in New Product Development: Insights from Pre-launch Sales Forecasting for Durables,” Journal of Marketing, p. 002224292110149, Jul. 2021, doi: 10.1177/00222429211014902.  S. Smith et al., “Using virtual reality tools in design and technical graphics curricula: An experience in learning,” Engineering Design Graphics Journal, vol. 69, no. 1, 2005.  J. Williams, F. Orooji, and S. Aly, “Integration of Virtual Reality (VR) in Architectural Design Education: Exploring Student Experience.” doi: 10.18260/1-2--32999.  C. Gibbs, “Exploration of Technology-aided Education: Virtual Reality Processing Plant for Chemical Engineering Process Design.” doi: 10.18260/1-2--34637.  C. S. Falcão and M. M. Soares, “Application of Virtual Reality Technologies in Consumer Product Usability,” in Design, User Experience, and Usability. Web, Mobile, and Product Design, 2013, pp. 342–351.  D. Halsmer, S. Spiess, G. Willis, and M. VanDusen, “Development of a Virtual Reality Flight Simulator to Assist in the Education of Aircraft Design Engineers.” doi: 10.18260/1-2--36964.  H. Park, J.-S. Son, and K.-H. Lee, “Design evaluation of digital consumer products using virtual reality-based functional behavior simulation,” Journal of Engineering Design, vol. 19, no. 4, pp. 359–375, Aug. 2008, doi: 10.1080/09544820701474129.  B. Jin, G. Kim, M. Moore, and L. Rothenberg, “Consumer store experience through virtual reality: its effect on emotional states and perceived store attractiveness,” Fashion and Textiles, vol. 8, no. 1, p. 19, Dec. 2021, doi: 10.1186/s40691-021-00256-7.  H. A. Al-Jundi and E. Y. Tanbour, “A framework for fidelity evaluation of immersive virtual reality systems,” Virtual Reality, 2022, doi: 10.1007/s10055-021-00618-y.
