Abstract

Bagasse ash (BA) was used as filler in hot mix asphalt. Mineral fillers in asphalt concrete mixes have a significant influence on asphalt concrete performance. Although mineral filler is just a minor percentage of the total performance of asphalt concrete, it plays a critical function. Bagasse Ash (BA) was utilized as a filler ingredient to test and assess the performance of asphalt concrete. BA was used in variable ratios to replace Stone Dust (SD) in road construction. Filler was used in varying quantities (4%, 5.5%, and 6.5%). Furthermore, BA is used to replace the traditional SD filler in partial replacements of 10%, and 20%, as well as full replacement of SD. The Marshall Mix Design Method was used with three different amounts of bitumen, namely 4%, 4.3%, and 4.6%. By using National Highway Authority’s (NHA) general criteria for Optimum Binder Content, a total of 108 samples were produced. The prepared mixes showed good outcomes, and the majority of them passed the NHA\'s main requirements. Some of the mixtures do not meet the VMA and VFA requirements given in MS-2 Asphalt Institute 2014. Two forms of performance testing are the Dynamic Modulus Test and the Wheel Tracking. A total of twelve OBC samples are evaluated for wheel tracking and dynamic modulus. Bagasse Ash has been tested in the lab and found to be capable of being used as filler in both partial and full replacement of conventional stone dust filler.

Introduction

I. INTRODUCTION

Sugarcane bagasse is a byproduct of the sugarcane industry that is collected during the extraction of sugarcane for sugar manufacturing. In Pakistan, the sugar-making sector consumes roughly 42 million metric tonnes of sugarcane and generates about 11 million metric tonnes of bagasse, with a capability of producing around 0.27 million metric tonnes of BA (bagasse ash) (Statistics 2007).

Heat is required for sugar production, which is generated by burning sugarcane. When sugarcane bagasse is burned, bagasse ash (BA) is created as a waste product in the form of ash. At a moisture percentage of 50%, each tonne of sugarcane produces about 0.62 percent residual ash and 26 percent bagasse. Pakistan has a huge road network with lengthy stretches of asphalt pavement. Its road network is mostly made up of flexible pavements. In Khaberpakhtun Khwa (KPK) province in Pakistan, stone dust is frequently utilised as a filler material in wearing courses under the National Highway Authority (NHA). Bagasse ash (BA), being a fine material, has the capability to be used as a filler material in asphalt concrete for pavement designs. The aim of this study is to investigate the usage of bagasse ash as filler and evaluate the performance of asphalt mixtures modified with BA filler.

Pakistan was one of the top ten sugarcane-producing countries, with Brazil producing 455 million metric tonnes and Pakistan producing 44 million metric tons. According to the FAO and UN, the total output is 63.7 million metric tonnes. Pakistan has 11.3 million hectares of harvested land, according to FAO estimates.

KPK, a province of Pakistan, has a sugarcane production capability of around 4.28 million metric tons. Only seven sugar factories are now operational in KPK. There are a total of 81 sugar mills in Pakistan [2]. As a result, Pakistan produces a considerable amount of sugarcane as a consequence of the development of BA. After extracting the juice from the sugarcane, the sugar mills burn the bagasse to use as fuel, producing bagasse ash. Bagasse ash is subsequently discarded in open holes or on open ground, posing major ecological risks. Bagasse ash comes in the form of a fine powder. As a result, it can be employed as a filler material in the wearing course of flexible pavements. Traditionally, SD (stone dust) is used as a filling component. Since it also has the ability to be used as a filler, BA can be employed as such. It would have a very favourable impact on the environment if it were used as filler material since it would recover the discarded land. Pakistan is one of the top ten nations that produce sugar. Sugarcane has such a large production capacity that it also produces a lot of BA. The goal of this study is to use bagasse ash as filler in the wearing course of asphalt.

Hot-mix asphalt (HMA) concrete is a mixture of aggregates and AC (asphalt cement). The aggregate serves as a structural skeleton, and the AC acts as an adhesive in a mixture. The properties of the aggregate have a direct and significant effect on the performance of asphalt pavements. Asphalt concrete is the most commonly used material in the pavement due to its superior service performance in providing driving comfort, stability, durability, and water resistance. The filler material is defined as any substance that passes through sieve no. 200 with a weight of at least 70% in accordance with AASHTO M17 and NHA specifications. The mineral filler plays a vital role in the overall behavior of the asphalt-concrete mixture. Generally, bitumen becomes very thin when heated, and similarly, when only bitumen is used in the asphalt without any fine agent, the bond between the aggregates and the bitumen is very weak.

Thus, the filler, although a small part, if used along with bitumen, increases the viscosity of the bitumen, making it thicker and forming a strong bond between the aggregates and the bitumen. A combination of bitumen and filler is known as bitumen mastic. The bitumen mastic, which is a thicker and longer-lasting material, improves the cohesive and adhesive characteristics of the asphalt.

As compared to the film of bitumen alone, it also provides a thick, strong film around the aggregate particles. By altering the porosity, the filler material helps improve the permeability of asphalt. Due to its angular and abrasive structure, the filler material enhances friction between the aggregates when used with the bitumen. According to its chemistry, filler enhances the thickness of bitumen, making the asphalt more resistant to rutting and other issues. Although the mineral filler is only a minor proportion of the asphalt, it does have a major influence on the overall performance and behavior of the asphalt.

Table 1 the AASHTO M 17 Mineral Filler properties.

Binder, mineral aggregates, and air spaces are the main components of asphalt concrete. Asphalt binder and mineral filler make up the mastic (mineral aggregate that passes screen no. 200 or less). In modern times, it's common to think of asphalt concrete as a combination of mastic-covered particles rather than pure bitumen-coated aggregates. The filler ingredient in bitumen mastic has gained popularity in the asphalt industry because of its significant influence on asphalt characteristics and HMA performance.

II. MATERIALS AND EXPERIMENTAL PROCEDURE

A. Collection of Bagasse Ash.

BA was collected through visits to major sugar factories, which included Frontier Sugar Mills Limited, a company that produces sugar. Peshawar’s (KSM) Khazana Sugar Mills Limited (Ltd.) and Mardan’s Sugar Mills Limited (Ltd.) were not in business. The bagasse ash (BA) there had been lying for a long time, and it was also a long way from Peshawar. As a result, the BA from Khazana Sugar Mills Limited in Peshawar was chosen.

B. Collection of Aggregates

In this research, NHA Class B aggregates are selected. In order to collect the aggregates having the same gradation as prescribed by Class B, field visits to different plants were conducted. At first, aggregates from different plants were collected. Then the aggregates were sieved according to NHA Class B in order to check their gradation. For the said gradation, major plants were visited, and finally, the aggregates from the KARKON plant were selected, which is located near the Peshawar motorway toll plaza.

C. Collection of Bitumen

Bitumen was collected from many plants. The bitumen that is mostly used in KPK is selected. i.e., bitumen of 80/100 penetrability grades were selected. For this purpose, various plants were visited, bitumen was collected, and finally, the bitumen came from the MCL plant, which is located near Jhagra.

D. Testing Procedure

The tests performed can be categorized into two classes:

• Preliminary tests on bitumen and aggregates
•  Principle tests.

1. Preliminary Tests on Bitumen: All the preliminary tests are performed as per AASHTO standards. Preliminary tests include penetration grade, softening point, flash and fire points, ductility test, maximum specific gravity, and bulk specific gravity tests.
2. Principal Tests: Principle tests are conducted to evaluate the effect of bagasse ash on the job mix formula (JMF) of asphalt concrete.
3. Sieve Analysis: The distribution or gradation of aggregate particle sizes in asphalt concrete mixes has a major impact on their overall performance. The aggregates are graded according to NHA Class B in this study. In general, the NHA General Specification, 1998, has its own set of standards for aggregate grading. The aggregate gradation of NHA is divided into two categories: Class A and Class B aggregates. There are some distinctions between the two classifications. Class B aggregates are finer in nature than Class A aggregates. For NHA Class B grading, the nominal maximum aggregate size is 19 mm. Furthermore, Class B was chosen for this study since it is the most often utilized by NHA in KPK, Pakistan. Aggregates in 3 distinct gradations: (Blend Gradation 01, Blend Gradation 02, and Blend Gradation 03) were selected. For this study, three distinct filler contents (4 percent, 5.5 percent, and 6.5 percent) of NHA class B Aggregates have been utilized even within the gradation range.

E. Asphalt Sample Preparation and Testing Mix Design Method.

The mix design approach was chosen for the development of asphalt mix samples because it can offer an integrated gradation of aggregates needed to obtain the flow value, stability value, and volumetric properties of mixes for a given binder concentration. The Marshal Mix Design Approach was employed in this study as the mix design method.

In this study, asphalt mixtures are created and created in accordance with the National Highway Authority of Pakistan's criteria and regulations, which are in turn compliant with AASHTO and ASTM standards. The materials used in this investigation are compliant with the Asphalt Institute's standards (MS-2), AASHTO's, and ASTM's requirements. The Marshal Mix Method is used to make a total of 108 mixes. The Asphalt Institute Mix Designs Method is used to establish the OBC (Optimum Binder Content) for various samples (MS-2).

F. Preparation of Asphalt Samples.

These asphalt concrete mixes were made according to the gradient that was chosen. Samples were prepared with 3 dissimilar bitumen concentrations (4 percent (a), 4.3 percent (b), and 4.6 percent (c) and 3 dissimilar filler additives (4, 4.5, and 6.5 percent). Furthermore, BA partially replaces (10% and 20%) and completely replaces (100%) of the traditional filler material, stone dust (SD). For each filler content, 12 asphalt mix samples are created. Samples from Blended Gradation-1 were labeled 4(a), 4(b), and 4(c); samples from Blended Gradation-2 were labeled 5.5(a), 5.5(b), and 5.5(c); and samples from Blended Gradation-3 were labeled 6.5(a), 6.5(b), and 6.5(c). Figures 3, 4, and 5 reveal the entire specifics of the mix gradation, designations, BA replacement, and sample count.

G.  Assessment

The purpose of the testing performance is to assess the asphalt concrete's on-the-ground performance. For each sample, the optimal binder content (OBC) is established. There are three different filler contents in conventional samples: 10% modified BA, 20% modified BA, and 100% modified BA (4 percent, 5.5 percent, and 6.5 percent). As a result, three OBC samples are created. For each of the samples described above. For example, three OBC samples are for standard, three samples of OBC are for 10% modified BA, three samples of OBC are for 20% modified BA, and three samples of OBC are for 100% modified BA. The performance characteristics of samples manufactured with Optimum Binder Content (OBC) are examined. A total of 12 samples were tested for OBC, including control and BA-modified samples. On the basis of OBC, 12 samples were created. OBC created 12 samples to be tested with a wheel tracker and another 12 samples to be evaluated with a Dynamic Modulus test. The tests were carried out at Pakistan's University of Engineering and Technology (UET) in Taxila.

The following are the three primary performance tests that were carried out:

1. Marshal stability test (AASHTO T-245): Marshal stability and flow properties were assessed using asphalt concrete samples. All of the samples were produced, compacted, and tested according to the AASHTO T245 and ASTM D6926, and D6927 procedures. At 105±5 oC. All of the aggregates used in the specimen preparation process were heated and dried beforehand. Each and every sample was produced by the substitution of BA (10 percent, 20 percent, and 100 percent). There were an overall number of 108 samples generated and evaluated in this study. The Marshall Stability and Flow findings are displayed. The highest resistance load attained with a constant rate of deformation is known as Marshall Stability (MS-2 Asphalt Institute 2014). During a stability test, Marshall Flow is an assessment of the specimen's distortion (both plastic and elastic) (MS-2 Asphalt Institute 2014). The Deputy Marshal’s load resistance provided by the test was used to determine the samples' stability. Following conditioning in a water bath at 60 ? for 30 minutes at a deformation of 50 mm/min and 5.08 cm/minute, the sample is measured in Kilograms or Newtons. Whenever the load is applied, as, during the Marshall Method, the sample flow is recorded. The flow is calculated by obtaining a measurement from a flow gauge at the point where the load increment can no longer be increased. The Flow result indicates that the sample has vertical deformation of 0.25mm (0.01 inch).
2. Wheel Tracking Test: This test is used to measure an asphalt mixture's rutting susceptibility. It uses Linear Variable Displacement Transformers to move a 6-inch diameter steel wheel over the sample for 10,000 passes, measuring the amount of rutting in the asphalt concrete mix (LVDT). Under standard loads and a temperature of roughly 60 °C, this test was conducted in order for the controlled samples and modified BA samples to determine their rut resistance. The 60 °C temperature is used to test the sample's performance in the most adverse conditions. In order to represent the on-ground real estate, a specific No. of passes and pressure are delivered to the slab in the roller compactor for consistent compaction throughout.

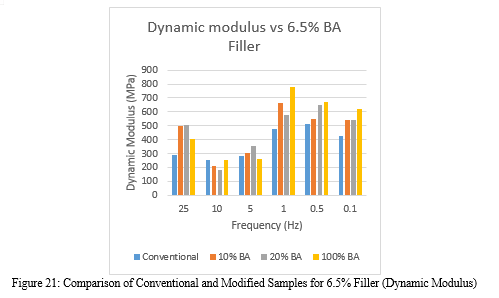

3. Dynamic Modulus Test: In this test, a total of 12 samples were made according to our optimized binder content. For the assessment of complex modulus, the sample is about 8 inches tall and 6 inches in Radius. The samples were compacted using a 600 kPa gyratory compactor. The resultant asphalt samples were sliced. Then samples were sliced with the help of a cutter to make a sample with a thickness of 6 inches and a diameter of 4 inches. The measurement results are shown, and the samples were evaluated in the Asphalt Mixture Performance Tester (AMPT) (NU-14), which is a freestanding assessment program with an enclosed environment linked with a computer. AASHTO TP 62 was used to test the specimens that were produced. With different frequencies of 25, 10, 5, 1, 0.5, and 0.1, the goal axial stress in DMT was preserved at 52 kPa. The temperature was set at 54 °C. The dynamic modulus of a specimen subjected to sinusoidal loadings defines the absolute value of the maximum stress-to-maximum strain ratio. As shown several gauges mounted to the sample at several points were used to measure the stresses in the generated asphalt samples. The table shows the range of values for the equilibrium duration, stress levels, and No. of cycles used as specified by AASHTO TP 62 specifies the requirements.

Table 2 Information about E* test equipment

H. Test of BA as a filler.

BA is employed as a filler component in this investigation. As a result, it was required to look at some of BA's basic characteristics and chemistry. Different tests, including scanning electron microscopy (SEM), are done on BA in the University of Peshawar's Centralized Resource Laboratory (CRL) in order to analyze the chemical composition, morphology, and surface texture, among other things. These exams will be addressed further down.

1. Scanning Electron Microscopy (SEM): SEM (Scanning Electron Microscopy) is a vital and effective test for analyzing the deep inner surface of a material. It’s a multifunctional imaging tool that's widely utilized for morphological and surface assessments of materials. It is made up of an electron beam that is focused on a substance and thereby creates a picture of the substance. Therefore, in an experiment, electrons interact with the atoms in the specimen, creating signals that describe the material's surface topography and composition. Figure 6 shows an SEM, which is a sort of nondestructive testing technology that provides information about a sample's particle distribution, size, structure, and arrangement. Furthermore, it provides information on the material's micro and nan-scale fissures. Table 3 shows the specifications of the SEM equipment at the University of Peshawar's Centralized Resource Laboratory.

Details of the Scanning Electron Microscope apparatus are listed in Table 3.

III. TEST RESULTS AND ANALYSIS

A.  Results and Analysis of Preliminary Tests on Bitumen.

Table 4 Assessment of Bitumen

B. Selection and Testing of Aggregates

The summary and test results conducted on aggregates are as follows.

Table 5 Summary of Aggregate Testing Results

C. Gradation of Aggregates

The sieve analysis showed that the percentage passing of aggregates from the concerned sieve is within the limits set by AASHTO T-164. The graph between percent passing and sieve sizes is shown in Fig.3 to Fig.5. The lower limit and upper limit specified by AASHTO for each size of the sieve are also shown by the curve. It is clearly visible from the graph that the actual passing of each sieve occurred between the lower and upper limits specified by AASHTO T-164. Thus, the sieve analysis test confirms that the use of bagasse ash as a filler will not disturb the job mix formula.

D. Scanning Electron Microscopy (SEM) Results

SEM is a particularly effective method for examining a material's surface texture by generating magnified images. The magnified images help us characterize its morphology and grain size distribution. It generally indicates how rough or smooth the surface of the test sample is. The SEM images at different magnifications shown in Fig. 6 illustrate that bagasse ash has a comparatively very rough surface. The rough surface of bagasse ash will help increase the friction of the asphalt and the viscosity of the bitumen. Therefore, it will produce very compacted and hard asphalt with good results for stability and flexibility.

E. Evaluation of Flow and Marshall Stability Test Result.

The flow and Marshall stability test is a fairly simple test for asphalt-concrete mixtures. As a result, flow and Marshall stability parameters are calculated for both conventional and bagasse ash-modified samples. The Marshall Stability and Flow values for standard and modified bagasse ash samples are presented in a graphical chart. Grapher software is used to create all of the graphs. Below are the graph plots.

F.  Assessing the Wheel Tracking Test Results

Rutting is a long-term distortion in which a groove or depression is created in the asphalt road as a result of automobile wheel movement. The wheel tracking experiment is used to determine the asphalt-concrete mixture's ability to resist rutting or to quantify the asphalt mixture's rutting vulnerability. For each filler content, 12 OBC-based samples were generated (4 percent, 5.5 percent, and 6.5 percent). Three samples were created for conventional samples, three for 10% bagasse ash modified samples, three for 20% bagasse ash modified samples, and three for 100% BA modified models. Every sample is subjected to the wheel tracking test at an average temperature of 55 ?. The overall rut depth is assessed after a wheel has made 10,000 passes.

IV. THE RESEARCH'S BENEFITS TO THE INDUSTRY

The bagasse ash is available in huge amounts around the sugar mills. Because it is the last waste product of the sugar mill industry, this BA has a very low or no cost. If this no-cost BA is encouraged to be used as a filler material, the industry will undoubtedly benefit because it has no cost when compared to conventional SD. The use of BA by the industry will ultimately result in the proper disposal of this waste, as it will be used in asphalt roads.

Conclusion

The following are the results of the tests that were conducted: 1) The stability of the asphalt mixtures was improved by using BA up to 20%. However, substituting 100% BA for SD disrupted the stability and resulted in lower asphalt concrete stability. 2) The flow of the asphalt mixture with 10% and 20% BA was well within the specified range, but the flow of the 100% BA modified had crossed the flow limits at various filler contents. 3) Although the percent of air voids at different filler and bitumen contents were also in the specified range, some of them violated the limits. 4) The scanning electron microscopy (SEM) of bagasse ash (BA) shows that it has a very rough surface texture. The rougher surface of BA will aid in better interlocking and friction, as well as increased viscosity. 5) EDX 6) FTIR 7) Dynamic Modulus Test 8) Wheel Tracker Test
