P&SMT, or power and signal multiplex transmission, is a method for transmitting communication signals using power electronic circuits. A three-phase cascaded multilevel inverter-based P&S MT system is recommended in this investigation. By allowing communication signals to be transmitted without utilizing a Controller Area Network bus, the proposed solution can lower the wiring expense of the existing electric vehicle (EV) communication system. The system\'s architecture enables battery balancing discharge and motor speed management for EVs. In a simulation system proposed in MATLAB/Simulink, both power and communication signals are effectively conveyed using the combined pulse width modulation scheme and frequency shift keying approach. The maximum signal rate of the proposed system is established at 600 bits per second by analyzing the bit error rate of the sent signal.
The energy mix that was used to create power on each day and throughout each time slot was retrieved using the data from the Italian national grid operator (Terna). The third phase involved obtaining emission factors for greenhouse gas (CO2) and pollutant emissions using various power-generating mixtures (CO, NOx, HC, and particulate). The emission factors in g/km were determined using data on the electric usage of cars registered in Rome and compared to the constraints established by European regulation for conventional vehicles (gasoline and diesel) Because they don't release pollutants into the environment, electric vehicles (EVs), which are propelled by electric motors, are growing in popularity today. The noise level of EVs is significantly lower than that of conventional internal combustion engine vehicles (ICEVs) due to the absence of internal combustion engine noise and its masking effect in EVs, as illustrated in Figure 1a. In addition, compared to ICEVs, the aerodynamic noise and road noise contribution to the interior noise in EVs is high. [1,2].
Moreover, recharging an EV battery at night can help the grid balance the load and save expenses by preventing the peak in power consumption . According to findings, 39.2% of all emissions in 2007 came from vehicles. Since emissions must be drastically reduced if humans are to prevent a catastrophic greenhouse effect, governments around the world have adopted strict emission regulations.
For instance, the Emission Standard of Automobiles of Europe IV Standard has been in effect in Europe since 2005.
The government also implemented fuel duty levy levies, which, together with increasing crude oil prices, result in higher fuel costs. Thus, the automobile industry is compelled by law to create electric vehicles (EVs) with great fuel efficiency and minimal emissions.
A road vehicle that uses electric propulsion is known as an EV. The emerging clutch less automated manual gearboxes for battery electric vehicles and other powertrain systems for hybrid electric vehicles are examined in this research, along with several types of motor speed synchronization control methods - . Because of its high reliability and high connectivity baud rate, using a Controller Area Network (CAN) bus for data transfer in electric vehicles is one of the methods that is widely accepted by manufacturers and researchers -. Fig. 1 depicts the general layout of an EV's powertrain. For a 2-level inverter, several conventional power systems for EVs use a DC/DC converter to enhance the battery voltage - . This methodology may lead to substantial switching losses due to its rapid voltage change rates (dV/dt). Due to the use of large inductors for the DC/DC boost converters, such a system is both costly and has a low power density.
Traditional EVs use the CAN bus to achieve their internal communication, but the power transmission line and the communication channel are still two separate parts of the system that may still be optimized. In order to transfer power and communication signals simultaneously through a three-phase multilevel inverter circuit for EVs, the power and signal multiplex transmission (P&SMT) approach is suggested in this research. A DC/DC converter is not necessary since the cascaded multilayer inverter itself may increase the battery voltage because the individual components of the multilevel inverter have substantially lower switching losses than those of a 2-level inverter. In the suggested system, frequency shift keying (FSK) is used to modify the transmitted signals, while pulse width modulation (PWM) is used to convert power.
The suggested solution can significantly lower the cost of the communication system since the power and signals are sent concurrently rather than using a CAN bus as a communication channel in modern EVs by using the same power line. The rest of this essay is arranged as follows: A few pertinent pieces of P&SMT literature are reviewed in Part II. The suggested system's structure and P&SMT methods are described in Part III. Part IV presents the simulation findings. A brief conclusion is drawn in Section V at the end of this study.
II. A REVIEW OF THE RESEARCH PROJECT WORK
Power Line Communications aggregates a wealth of knowledge on PLC-specific subjects that gives the reader a comprehensive study of the key milestones in the industry. collects material that is widely spread in contemporary literature, including research papers and standards, and serves as a single-source reference manual for PLC. includes both current research issues and state-of-the-art themes . Adding signals to a power line might make the channel more difficult because the power line itself is not intended to transport communication data. A broadband power line communication (PLC) model should also take electromagnetic interference into account since its 2 MHz to 32 MHz carrier frequency may be the same as the frequency of short-wave radios . Power over Ethernet (PoE) is a method that enables various IP-based terminals, such voice-over-Internet telephones and IP cameras, to deliver both data and electric power via twisted-pair Ethernet cable . Nevertheless, this strategy is not acceptable for pan-tilt-zoom cameras and other high-power-demanding applications .
Since the maximum output power of power sourcing equipment for PoE is larger than 15.4 W in the standard IEEE 802.3af.13. It will be crucial to continue to (a) quantitatively assess the levels of RF emissions from everyday household items and smart meters to which the public may be exposed and (b) investigate the potential thermal and non-thermal effects of such RF emissions on human health as the use of wireless technologies of all kinds increases. If customers are still concerned about wireless meters, an alternate smart meter configuration (such as one that is connected) might be taken into account. In addition to the advantages, PLC technology offers built-in security . In the past few years, solutions for utilizing power electronic circuits for signal transmission have been studied. In the literature – , the signal transmission function during power conversion is realized using the Buck circuit with a multipath load structure. The switching ripple created on the input bus may be modulated with the FSK approach by altering the switching frequency with the PWM technique. In their studies, the switching signal is captured using a peak detection circuit, and the digital "0" and "1" are then identified using band-pass filtering and signal processing -. Bidirectional signal transmission between a master module and slave modules is accomplished in their design. Power and signal are transmitted sequentially over a single topology because separate switches work with varying duty ratios, and the transmitted signals are abstracted by detecting changes in the bus voltage. Yet, because of the intermittent transmission of signals, such a system has a poor communication rate.
III. PROPOSED TRANSMISSION OF POWER AND SIGNAL MULTIPLEXA. System Architecture
In this article, the transmitted battery state of charge (SOC) signal and the motor speed control signal are used as illustrations to further explain the foundations of the proposed P&SMT approach. Fig. 2 depicts the preferred system architecture for an EV adopting the P&SMT approach. Signals are sent through a three-phase multilevel inverter circuit to enable communication between the battery and BMS, as well as between the MCU and motor. Fig. 3 shows the recommended structure of a three-phase P&SMT system. Each phase of the inverter architecture is made up of four series-connected H-bridge cells, one of which is driven by a DC voltage source and is used for signal transmission, while the other three are battery-powered and are used for energy transmission. tempo of the motor the phase A and phase B sections are used to deliver the speed adjustment signal and the SOC signal, respectively. In this scenario, the inverter's load is a permanent magnet synchronous motor (PMSM).
B. Transmission of Signals
In the proposed methodology, the signals are modulated using the FSK mechanism, and the signal transmission scheme is shown in Fig. 4. Two carriers with different frequencies, as illustrated in SC, can be used to modulate digital bits "1" and "0," respectively, if the transmitted 4-bit signal SI is "1010". The signal may be modified by manipulating the quick swapping of the four switches in the cell since it is intended to be relayed through an H-bridge cell in each phase. A switch will specifically turn on if a gate signal of digital '1' is applied and turn off if a gate signal of digital '0' is applied. The switches Q1 and Q2 in Fig. 3 function together and at the same instance, switches Q3 and Q4 both turn on and off. Also, to prevent a short circuit, switches Q1 and Q2 work in the opposite state from switches Q3 and Q4. Because the three other cells used for energy transmission are coupled in series with the H-bridge cell used for signal transmission, The output current waveform can be thought of as being overlaid with the transmitted signal.

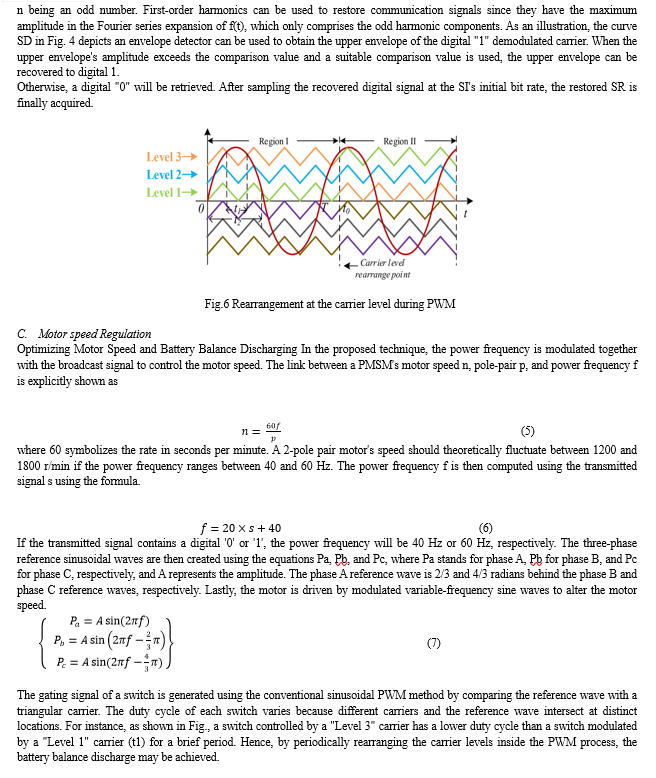

As contrasted to a switch operating with a wider duty cycle, the switch with a reduced duty cycle uses less energy. Consequently, once the system has been working for a while, it may transpire that the batteries' remaining capacity is out of balance. Hence, by periodically rearranging the carrier levels inside the PWM process, the battery balance discharge may be achieved. To accomplish this goal, a data stream created from the battery SOC values at the periodic sampling point is first communicated via the FSK technique through a full-bridge cell supplied by a DC voltage source. The SOC values are split into various decimal numbers once the signal from the phase current has been demodulated. Lastly, the transmitted SOC values are used to reorder the PWM carrier levels, and the battery balance discharge is accomplished.
The first set of simulation parameters and output waveforms
A. Changes in the Motor Speed Transfer of Signals
The transmission rate of the signal is 100/3 bps since the original 8-bit motor speed adjustment signal is configured as 11110000 with 0.03 s per bit. Next, to distinguish between two adjacent 8-bit data strings, a 4-bit cyclic redundancy code (CRC) is inserted at the end of each data string. The full 12-bit data frame is 111100000100 since the 4-bit CRC code produced by the generator polynomial is 0100. By using the modulo-2 division method and the divisor 11110 to divide the sent data frame, the system may check to see whether the residual is zero to see if the frame data is incorrect. If it is 0, it demonstrates that there were no transmission faults in the frame data; if not, there was a problem. The first message includes information as well as Fig. 1 displays the message data after the CRC coding. It's important to note that the time required to send a frame with and without a CRC code is the same; as a result, the 12-bit data is delivered at a rate of 0.02 s per bit. The 4 kHz square wave is utilized as a carrier for digital "1," and the 8 kHz square wave is used as a carrier for digital "0," once the whole data frame has been collected. The 4 kHz carrier is then recovered from the phase current waveform with a band-pass filter after the signal has passed through an H-bridge cell. The transmitted signal is then recovered using an algorithm using the filtered carrier waveform SF in Fig 12.
In other words, the waveform SF's amplitude in the zone of cut-off frequencies (0.04) is half that of the region of passband frequencies (0.08). As a result, "0.05" is chosen to distinguish between the passband frequency area and the cut-off frequency region of the filtered wave. There is a delay in the recovered signal SST in Fig. 4, which is mostly brought on by the filtering procedure, as compared to the waveform SE in Fig. 3. The recovered signal SRE in Fig. 4 is produced when the 4-bit CRC coding is removed after each 8-bit data frame. The transmitted data in the first period before the 4-bit CRC code is 'ignored' by the system because the 4-bit CRC code first appears at 0.18 s (0.028+ 0.02 (one-bit delay) = 0.18). Also, the pace of the recovered data frame is comparable to that of the original signal (0.03 s per bit). Although SRE may be seen as delaying a full signal period plus one sampling time, the recovered 8-bit data frame first emerges at 0.27 s (0.038+ 0.03 (one-bit delay) = 0.27).
The recovered SOC signal is termed SRB; SBA1 includes the frame '01100100', which denotes the SOC of the first battery; SBA2 contains the frame '00101000," and SBA3 contains the frame '00100011', which denotes the SOC of the second battery. Lastly, the motor speed is controlled by the signal SRE that was retrieved in Fig. 5 and whose waveform is shown in Fig. 6. The motor speed varies every time the signal shifts from '0' to '1' for around 0.01 seconds. The motor speed stabilizes between 1200 r/min and 1800 r/min as predicted because the power frequency is made to fluctuate between 40 Hz and 60 Hz. Considering that the transmitted signal is superposed on the energy-based phase current, The phase current waveform will be disrupted by the signal, which will impair the stability of the motor speed. The steady-state volatility of the motor speed is also higher than that of the usual double closed-loop control technique because the motor speed is open-loop governed by varying the motor power frequency.
B. Capacity for System Data Transfer
Calculating the error rate of the sent signal will reveal the proposed system's maximum data transmission rate. The error rate of the sent signal is estimated by contrasting the original data string with the one received one bit at a time. The link between the bit rate and the error rate is demonstrated by progressively raising the speed of the motor speed control signal. According to this number, the error rate starts to increase when the signal rate exceeds 600 bit/s. There is a very high demand for the accuracy of the communicated data since the proposed system controls the battery discharge process in accordance with the batteries' SOC value. As soon as the demodulated data is inaccurate, the battery's SOC sequencing fails to be anticipated outcomes. Comparing this system's data rate to more traditional communication methods like optical fiber reveals that it is rather low. Yet, this system can handle such a modest data rate since the batteries' SOC value does not change considerably quickly. Furthermore, a data rate of 600 bit/s is adequate to convey the motor speed control signal since the motor speed requires some time to settle after each frequency change.
It is recommended that a three-phase, multilevel inverter-based P&SMT system be used to control the motor speed and discharge the battery balance for EVs. Each phase of the inverter architecture involves four series-connected H-bridge cells, three of which are controlled by PWM for energy transmission and the other two by FSK for signal transmission. The complexity of the overall system can be decreased by simplifying the system wiring since the suggested technique uses a portion of the power electronic circuit as a communication channel. The viability of the hypothesized P&SMT technique is tested by sending the battery SOC signal and the motor speed adjustment signal through the phase-A and phase-B currents, respectively, using a simulation model developed in MATLAB/Simulink. The signal transmission also After examining the connection between the signal bit rate and error rate, the capacity of the suggested approach is found to be 600 bit/s.
