Samplingbased path planners develop paths for robots to journey to their destinations. The two main types of samplingbased techniques are the probabilistic roadmap (PRM) and the Rapidly Exploring Random Tree (RRT). PRMs are multiquery methods that construct roadmaps to find routes, while RRTs are singlequery techniques that grow search trees to find paths. This investigation evaluated the effectiveness of the PRM, the RRT, and the novel Hybrid RRTPRM methods. This novel path planner was developed to improve the performance of the RRT and PRM techniques. It is a fusion of the RRT and PRM methods, and its goal is to reduce the path length. Experiments were conducted to evaluate the effectiveness of these path planners. The performance metrics included the path length, runtime, number of nodes in the path, number of nodes in the search tree or roadmap, and the number of iterations required to obtain the path. Results showed that the Hybrid RRTPRM method was more effective than the PRM and RRT techniques because of the shorter path length. This new technique searched for a path in the convex hull region, which is a subset of the search area near to the start and end locations. The roadmap for the Hybrid RRTPRM could also be reused to find pathways for other sets of initial and final positions.
I. INTRODUCTION
Robots use samplingbased path planners to generate routes to travel from their starting to their goal positions, while avoiding obstructions that may be found along their pathways [1]. Samplingbased algorithms, to include probabilistic roadmaps (PRM) and rapidly exploring random trees (RRT), are probabilistically complete. They will find a route if enough iterations have been accomplished and if a path exists [26]. PRMs are multiquery planners that create roadmaps to find routes. These roadmaps could be reused to find paths for other sets of starting and final locations [712]. RRTs are singlequery techniques that build search trees to output paths, but they must be reexecuted to generate routes for new pairs of initial and final positions [10].
The RRT algorithm grows a search tree by selecting points from its environment and connecting them to this search tree if these points do not cause collisions with objects [9]. When the search tree reaches the goal location, a route is produced by working backwards to pinpoint the parent node for each node in the pathway until it backtracks to its starting point [7, 10]. The runtime for RRTs is usually shorter than other types of planners because RRTs terminate when a route is found, but the path may not be optimized [9]. The PRM planner chooses points from its search area and connects them to form a roadmap [7,10,12,13]. A graph search method, such as Dijkstra’s algorithm or A*, will then be utilized to search this roadmap for the most direct path to the destination [8,14]. However, parts of this roadmap could become entrapped inside obstacles because points located inside objects are not discarded [15]. A novel multiquery samplingbased path planner, the Hybrid RRTPRM, was developed to improve the performance of the RRT and PRM techniques by shortening the path length from the starting to the end locations. The Hybrid RRTPRM planner is a synthesis of these two techniques. It generates the first path by using the RRT planner, and a second path by employing the PRM algorithm. The outermost points of these paths define the perimeter of a polygon, also known as the convex hull region, which is a subset of the search area. Points are selected from the convex hull area because this region is close to the initial and final positions. In addition, points that are located outside objects are saved, while points that are inside objects are discarded to prevent the roadmap from being trapped within these obstructions. A roadmap is created inside the convex hull area by connecting these saved points. A graph search technique looks for a path to the destination by using this roadmap. Since the Hybrid RRTPRM is also a multiquery planner, its roadmap can be repurposed to generate paths for other sets of initial and final positions. Experiments were conducted to determine the effectiveness of the Hybrid RRTPRM method when compared to the RRT and PRM planners. The performance metrics that were measured included the runtime, number of iterations, number of nodes in the search tree or roadmap, number of nodes in path, and the path length. The relationship between the RRT, PRM, and Hybrid RRTPRM path planners is provided in Fig. 1.
The remainder of the paper is structured as follows: Section 2 discusses the RRT, PRM, and Hybrid RRTPRM planners. Section 3 provides the setup for the experiments. Section 4 reviews the experimental findings. Section 5 concludes this study and briefly describes future experiments.
II. DISCUSSION OF RRT, PRM, AND HYBRID RRTPRM PLANNERS

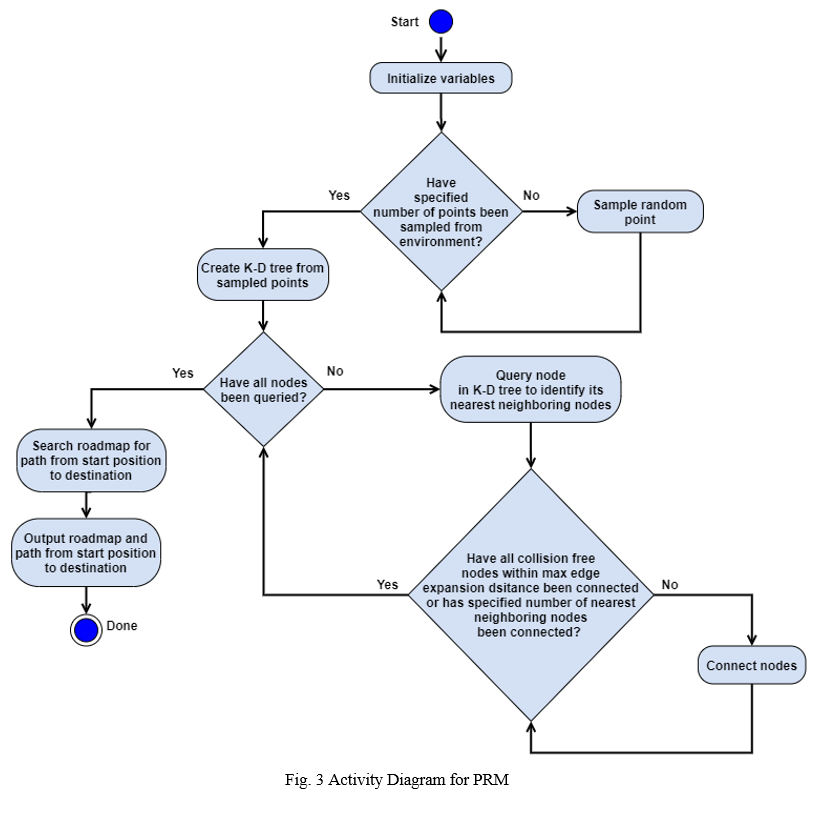

This section of the paper reviews the activity diagrams for the RRT, the PRM, and the Hybrid RRTPRM algorithms to explain how they generate routes from the starting to end locations.
A. Rapidly Exploring Random Tree (RRT)

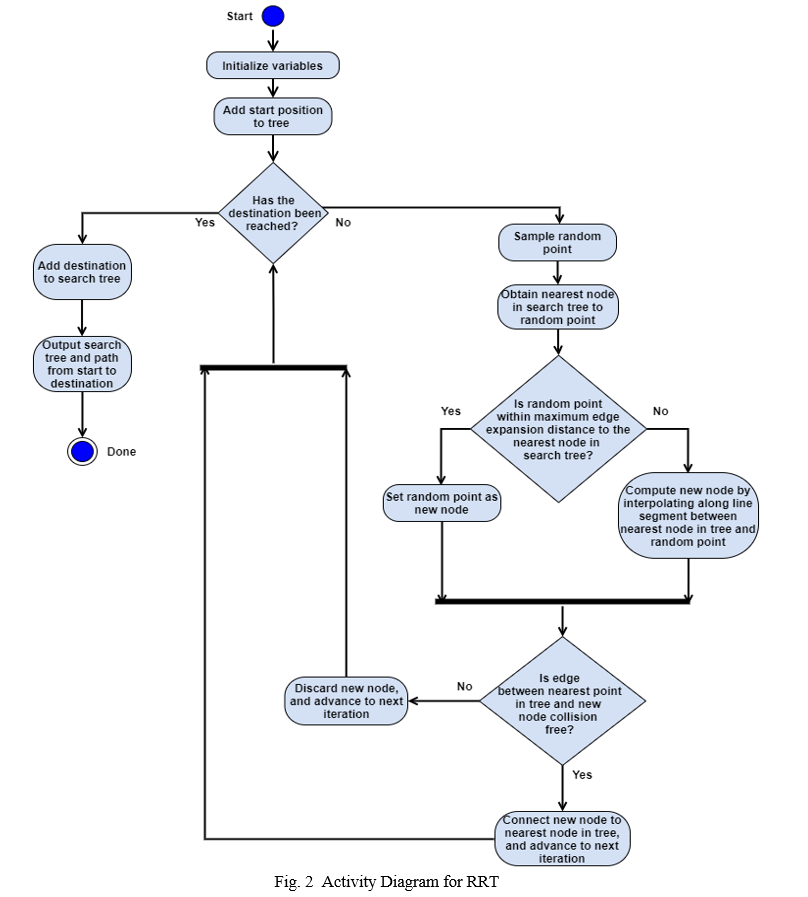

The RRT technique begins by initializing the variables. These include the obstacle list, the start and goal locations, the maximum edge expansion distance, the search area boundaries, and the search tree. Next, the starting location is added to the search tree, and a determination is made to see if the destination has been reached. If this is the case, this end point is appended to the search tree. A path is generated, the search tree is outputted, and the algorithm is concluded.
If the destination has not been found, the RRT selects a point from the search area. The distance from this point to the nearest node in the search tree is calculated by using the distance formula as shown as follows [4]
where dnearest,j is the distance between the node with index j in the list of nodes in the search tree and the random point, nodej,y is the y coordinate of the jth node in the node list, rndy is the y coordinate of the randomly generated point, nodej,x is the x coordinate of jth node in the node list, and rndx is the x coordinate of the randomly generated point. The nearest node in the tree to the random point has the minimum dnearest,j value.
The RRT then uses the maximum edge expansion distance to calculate the location of a new node. If the randomly generated point is within the maximum edge expansion distance to the nearest node in the tree, this random point will become the new node, but it will not be connected to the search tree yet [4].
If the random point is further away from the nearest node in the tree, the new node is found by interpolating along the line segment between the nearest node in the tree and the randomly generated point [15]. The coordinates for the new node are calculated as follows:
where newy is the y coordinate of the new node, newx is the x coordinate of the new node, θ is the angle between the random point and the nearest node, dexp is the maximum edge expansion distance, nearesty is the y coordinate of the nearest node in the tree, and nearestx is the x coordinate of the nearest node in the tree. The angle between the nearest node and the random point, θ, is calculated as follows:
where dy is the change in position along the y axis, while dx is the change in position along the x axis. In addition, rndy is the random point’s y coordinate, nearesty is the nearest node’s y coordinate, rndx is the random point’s x coordinate, and nearestx is the nearest node’s x coordinate [15]. After a new node has been generated, it is checked to determine if connecting this new node to the nearest node in the tree would cause a collision. If this is the case, this new node will be discarded, and the RRT method advances to the next iteration. If the line segment between the nearest node in the tree and the new node does not touch any obstacles, the new node is added to the tree by connecting it to the nearest node. This planner advances to the next iteration. The RRT continues to add collisionfree nodes to the search tree until it reaches the destination. The goal position is then added to the search tree. The search tree and path are outputted, and the algorithm terminates. The RRT activity diagram is provided in Fig. 2.
B. Probabilistic Roadmap (PRM)
The PRM method begins by initializing variables. These include the start and end positions, search area boundaries, number of iterations, the maximum number of nearest neighboring nodes for each node in the roadmap, the maximum edge expansion distance, and the list of obstacles. It then checks to see if the prespecified number of iterations have been completed. If this is not the case, the PRM randomly selects points until the prespecified number of points have been obtained from the search area. A KDimensional (KD) tree is formed from these points. A KD tree is a datastructure where points are grouped into a binary tree to facilitate performing nearestneighbor queries on points in this tree [1618]. For a KD tree, K represents the number of dimensions of the search area [18]. For each node in the KD tree, its nearest neighboring nodes are identified. Collisionfree nearby nodes will be connected to this node until all these neighboring nodes that are located within the maximum edge expansion distance or if the maximum number of nearest neighboring nodes have been linked.
When all nodes in the KD tree have been connected, a roadmap is formed. A graph search algorithm searches it for the shortest path from the start to the goal location. When this path is found, the PRM outputs this route and the roadmap. This planner then terminates. Fig. 3 shows the PRM activity diagram.
C. Hybrid RRTPRM

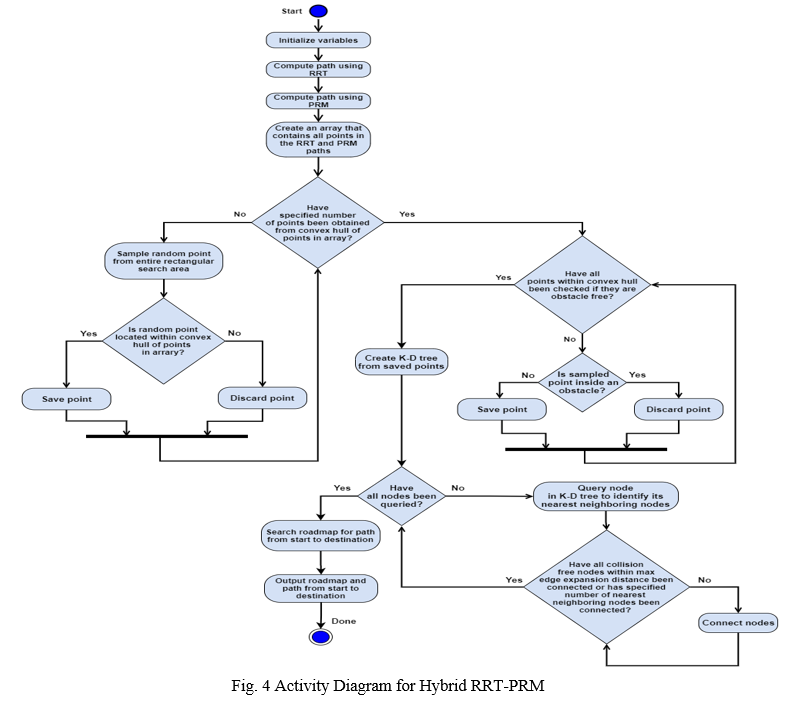

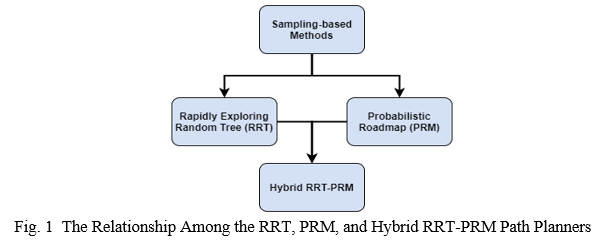

The Hybrid RRTPRM technique is a new type of samplingbased algorithm. It combines the RRT and the PRM techniques to generate shorter paths. The Hybrid RRTPRM algorithm begins by initializing variables, which include the start and end positions, the limits of the search area, the number of iterations, and the maximum number of nearest neighboring nodes for each node in the roadmap, the maximum edge expansion distance, and the obstacle list. It then plans two routes. The RRT method generates the first path; after which, the PRM planner finds a second path. The equations for these paths are provided as follows:
where pathrrt is the list of nodes in the RRT path, rx1 and ry1 are the x and y coordinates of the first node in the RRT path, and n is the number of nodes in this path. For the PRM path, pathprm is the list of nodes in the PRM path, px1 and py1 are the x and y coordinates of the first node in the PRM path, and m is the number of nodes in the path. The paths obtained by the RRT and PRM methods are then merged into a combined list of nodes, which is provided as follows:
where pathcombined is the combined list of nodes. The first and final nodes of the RRT path are excluded from the combined list because they are already included in the PRM path. The number of points in the combined list of nodes is computed as follows:
where s is the number of points in the combined list, n is the number of nodes in the RRT path, and m is the number of nodes in the PRM path. The combined list of nodes is then converted into an array.
The Hybrid RRTPRM then determines if the prespecified number of points have been obtained from the subsection of the search area near to the start and goal locations. This region of the search area, known as the convex hull, is obtained by connecting the outermost points in the combined list of nodes [19]. If the specified number of points have not been obtained from the convex hull, a random point is sampled from the entire rectangular search area. Linear programming is now applied to determine if the random point is located within the convex hull [20]. Linear programming is a mathematical technique that optimizes a function that is subjected to constraints [2122]. The general linear programming problem is defined as
where c is a row vector whose elements are the coefficients of the objective function, while x is the column vector that is the solution to the linear programming problem. The x vector has the same number of elements as the c vector. In addition, Aeq is the equality constraint matrix, and beq is the equality constraint column vector [2324].
When linear programming is applied in the Hybrid RRTPRM algorithm, the objective function vector is a row vector of zeros that has s elements because there is no function to be optimized. The equation for the equality constraint matrix, Aeq, is provided as follows
For this matrix, every column contains a point in the combined list of nodes followed by a one to fulfill the requirement for obtaining a convex combination [20]. The equality constraint vector, beq,is provided as follows:
where rndx is the x coordinate of a randomly sampled point from the entire rectangular search area, while rndy is the y coordinate of this randomly sampled point.
Linear programming then performs the simplex method to determine if the linear program is feasible and to obtain a solution [24]. A linear program is infeasible when at least one of its artificial variables is a positive number. It is feasible when none of its artificial variables are positive numbers [25].
The simplex algorithm consists of two phases. The first phase minimizes the sum of the artificial variables, determines the feasibility of the linear program, and calculates a base form solution. The second phase uses this base form solution to solve the linear program [25]. Applying linear programming to determine if a point is located inside the convex hull is beneficial because the convex hull does not need to be calculated to determine whether a randomly generated point is located within this region of the search area [20].
For the Hybrid RRTPRM PRM method, if phase I of the simplex method finds at least one artificial variable that is a positive number, the randomly sampled point is located outside the convex hull search area. This point is then discarded. When none of the artificial variables are positive numbers, the randomly sampled point is located within the convex hull. It is saved to a list for further processing [2526]. The second phase of the simplex method uses the base form solution to find an optimal solution, but phase II is not implemented because there is no objective function to be optimized.
When the specified number of points have been obtained, this planner iterates over these points to identify the ones that are located inside obstacles. These points will be discarded to prevent a roadmap from being created within them. Points that are outside obstacles will be saved to a list to make a KD tree. The nearest neighboring nodes are identified for each node in the KD tree. Collisionfree nodes will be connected to this node until all neighboring nodes within the maximum edge expansion distance or if the maximum number of nearest neighboring nodes have been attached to it. When all nodes have been connected, a roadmap is formed from them. A graph search technique will search this roadmap for the shortest pathway to the destination. The Hybrid RRTPRM algorithm then outputs the roadmap and the path. This algorithm then terminates. Fig. 4 provides the activity diagram for the Hybrid RRTPRM algorithm.
III. SETUP FOR EXPERIMENTS
This investigation evaluated the effectiveness of the Hybrid RRTPRM planner, when compared with the RRT and PRM techniques. Singlequery experiments were accomplished for these three planners in a twodimensional square search area with corners located at (0,0), (0, 40), (40, 40), and (40, 0). The beginning and end positions of the paths were initialized at (10, 10) and (30, 30) respectively. Fifteen circular obstacle sets were placed in this environment. Each set consisted of 12 randomly generated obstacles. The size of the radii for these circles and the positions of the circle centers were found using uniform probabilistic distributions. The circle radii ranged from one to four units in size. The placement of the x and y coordinates of the circle centers ranged from four to thirtysix so that the circular obstacles would be contained entirely within the square search area. Each algorithm was executed 450 times with a maximum of 500 iterations per trial.
The Matplotlib, NumPy, PythonRobotics, and SciPy toolboxes were used to conduct these experiments [15, 2731]. Conducting simulations to evaluate the effectiveness of these algorithms to generate paths removed errors associated with obstacle localization, robot localization, and robot motion execution. The maximum edge expansion distance for these path planning experiments was five units. For the RRT algorithm, the maximum edge expansion distance is used to calculate the locations of the new nodes that would be added to the search tree [15].
For the PRM and Hybrid RRTPRM algorithms, the maximum edge expansion distance is the maximum separation between two nodes for them to be connected to each other in a roadmap [8]. For the Hybrid RRTPRM and the PRM methods, the maximum number of nearest neighboring nodes that could be connected to a node in the roadmap was 100 nodes. These two path planners also used Dijkstra’s Shortest Path Algorithm to search their roadmaps for paths [15]. This graph search algorithm was implemented because it required all edges of the roadmaps to have positive values [3234]. The roadmaps met this requirement because the distances between nodes are positive numbers [32].
The performance metrics that were recorded were the path length, runtime, number of nodes in the path, number of nodes in the roadmaps or search trees, and the number of iterations for each path planner to output a path. The path length was obtained by adding the distances between each consecutive pair of nodes in the route from the initial position to the destination. The path length is also the dominant criterion for establishing the most efficient path planning algorithm since robots with shorter paths arrive at their destinations quicker.
The runtime is the amount of time for each path planner to output a path, but it did not include the time to display the search trees, roadmaps, and paths. The number of nodes in the paths was obtained by counting the starting position, the waypoints, and the end position. The number of nodes in the search tree or roadmap corresponded to the number of points in the search tree for the RRT technique. It corresponded to the number of points in the roadmap for the PRM and Hybrid RRTPRM planners. For all path planning methods, the number of iterations was the number of points sampled from the environment.
After the simulations were completed for each type of planner, the data for each performance metric was stored to a list so that the sample statics could calculated for further analysis. The sample statistics included the mean, standard deviation, mode, median, maximum, and minimum values for each performance metric. Images were also captured for search trees, roadmaps, and paths outputted by these path planning algorithms.
IV. EXPERIMENTAL FINDINGS
For this investigation, the performance measures that were collected to evaluate the effectiveness of these three types of samplingbased planners were the path length, runtime, nodes in path and nodes in tree, and the number of iterations that were required to generate a path. In addition, sample statistics were also compiled so that meaningful conclusions could be drawn from the data. The statistical values that were saved include the mean, the standard deviation, the mode, the median, the maximum, and the minimum. To facilitate analysis of the effectiveness of these types of algorithms, images of the search trees, roadmaps, and paths were captured. For the search tree and roadmap diagrams, the red “x’s” are the starting and the end positions. The blue circles are the round obstacles. For the RRT experiments, the green lines are the search tree. For the PRM and Hybrid RRTPRM methods, the green lines are the roadmap. For the path diagrams, the path is shown in red. All paths begin at (10,10) and end at (30,30).
For the RRT method, the mean path length was 39.054 and the runtime to obtain a path was 0.007 s. The number of nodes in the path and in the tree were 9.593 and 24.027 respectively. The RRT planner outputted a path after 37.173 iterations because it terminates immediately when the search tree connects to the destination. The path, however, was not optimized. The RRT planner results are provided in Table I.
Table I Results for RRT Experiments
Quantity
Mean
Standard Deviation
Mode
Median
Max
Min
Path Length

39.054
7.065
none
37.613
63.973
28.408
Runtime (s)

0.007
0.010
0.000
0.000
0.047
0.000
Number of Nodes in Path
9.593
1.706
9.000
9.000
16.000
7.000
Number of Nodes in Tree
24.027
19.224
10.000
19.000
148.000
7.000
Number of Iterations
37.173
30.789
23.000, 15.000
27.000
222.000
7.000

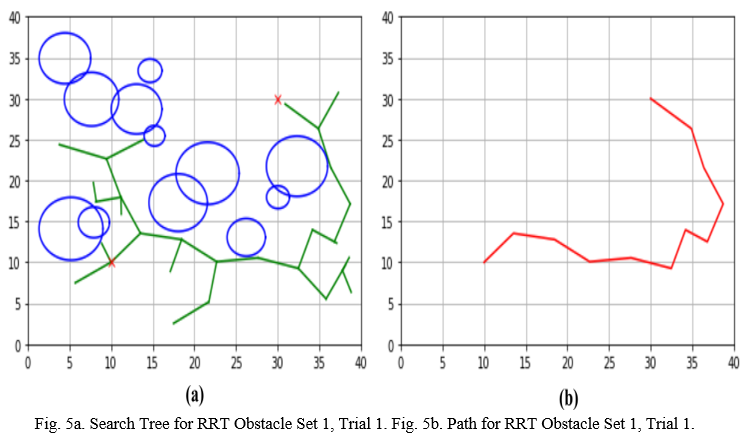

For this RRT investigation, images for the search tree and path were acquired. Fig. 5a displays the RRT search tree for Obstacle set 1, Trial 1, while Fig. 5b shows the path from the start to the end locations. As can be seen in Fig. 5a, the search tree was not dense because it only took an average of 37.173 iterations to obtain a path. The path also remained outside obstacles because the search tree was grown from the starting location by iteratively connecting to nodes that were found outside obstacles. Points generated inside an obstacle were discarded, and they were not connected to the search tree. Fig. 5b shows that the RRT path meandered because the path was not optimized.
For the PRM experiments, the average length of the path was 30.693, and the runtime was 0.482 s. The number of nodes in the path and in the roadmap were 9.611 and 500 respectively. The number of nodes in the roadmap was 500 because points that were located inside obstacles were not removed. It also took 500 iterations to complete each trial because this number was preset during the initialization of the program. This planner sampled points until the prespecified number of iterations were reached. The results for these experiments are provided in Table II.
Table III Results for PRM Experiments
Quantity
Mean
Standard Deviation
Mode
Median
Max
Min
Path Length
30.693
1.565
none
30.399
39.042
28.465
Runtime (s)
0.482
0.268
none
0.472
0.997
0.004
Number of Nodes in Path
9.611
0.827
10.000
10.000
12.000
8.000
Number of Nodes in Roadmap
500
0.000
500
500
500
500
Number of Iterations
500
0.000
500
500
500
500

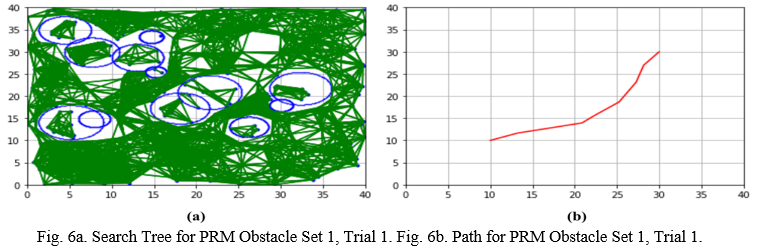

The diagrams for the roadmap and for the path were also captured for the PRM experiments. Fig. 6a shows the roadmap for Obstacle set 1, Trial 1. Fig. 6b displays the path from the starting point to the destination. Fig. 6a shows that the roadmap was very dense, and it covered most of the search area. In addition, portions of the roadmap were trapped inside the round obstacles, which could not be accessed to travel to the destination. Fig. 6b shows that the path was more direct because the graph search algorithm searched this highly interconnected roadmap for a shorter path.
The Hybrid RRTPRM technique had a mean path length of 29.610. Its runtime was 0.473 s. The number of nodes in the path and in the roadmap were 10.798 and 380.384 respectively. The number of nodes in the roadmap was less than 500 because the randomly generated points that were located inside obstacles were eliminated. The number of iterations, however, was 500 because this planner continued to iterate until the prespecified number of iterations were accomplished. The results for the Hybrid RRTPRM method are listed in Table III.
Table IIIII Results For Simulations for Hybrid RRTPRM Method
Quantity
Mean
Standard Deviation
Mode
Median
Max
Min
Path Length
29.610
1.439
none
29.285
37.992
28.306
Runtime (s)
0.473
0.280
none
0.449
0.997
0.003
Number of Nodes in Path
10.798
1.349
11.000
11.000
15.000
8.000
Number of Nodes in Roadmap
380.384
52.722
362.000, 371.000, 372.000, 388.000
378.500
477.000
231.000
Number of Iterations
500
0.000
500
500
500
500

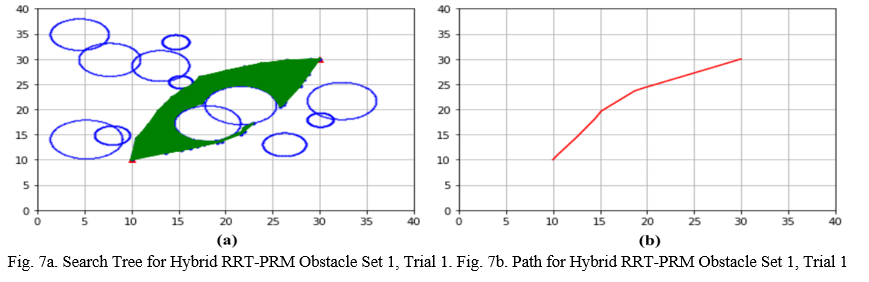

The plots for the roadmap and for the path were also taken for the Hybrid RRTPRM experiments. Fig. 7a depicts the roadmap for Obstacle set 1, Trial 1, and Fig. 7b exhibits the path from the beginning to the final locations. Figure 7a shows that the roadmap was extremely dense, and it was entirely contained within the convex hull region of the search area and outside the obstacles. This convex hull was created by finding two paths using the RRT and PRM methods and then joining the outermost points in these paths. Sampling points within the convex hull generated shorter paths because the search area was smaller. This area was also near the start and goal locations. The Hybrid RRTPRM method discarded points that were sampled inside obstacles, and this further reduced the number of nodes in the roadmap. Fig. 7b shows that the route was very direct, and it only had a slight turn to go around obstacles that were found within the convex hull area.
The results for the Hybrid RRTPRM, RRT, and PRM methods were compared to evaluate their effectiveness to find paths. These metrics include the length of the path, runtime, number of nodes in the path, number of nodes in the tree or roadmap, and the number of iterations. Table IV provided a summary of the performance metrics for these three types of algorithms.
Table IVV Summary of Results
Algorithm
Path Length
Runtime
Number of Nodes in Path
Number of Nodes in Tree or Roadmap
Number of Iterations
RRT

39.054
0.007
9.593
24.027
37.173
PRM

30.693
0.482
9.611
500
500
Hybrid RRTPRM
29.610
0.473
10.798
380.384
500
The RRT, PRM, and Hybrid RRTPRM path planners successfully outputted paths. When the RRT method was compared to the Hybrid RRTPRM technique, it had a shorter runtime, fewer nodes in the tree, and fewer iterations. The path was not optimized because this algorithm terminated as soon as a path was found. The Hybrid RRTPRM method yielded a shorter path length. Since the length of the path is the overriding factor to establish the efficacy of a path planner, the Hybrid RRTPRM planner had a better performance than the RRT. Furthermore, the Hybrid RRTPRM algorithm is a multiquery technique so its interconnected roadmap could be repurposed to obtain paths for different pairs of initial and final positions. By contrast, the RRT method is a singlequery technique, and this algorithm must be reexecuted to obtain routes for different sets of beginning and end points.
When the PRM planner was compared to the Hybrid RRTPRM algorithm, it had fewer nodes in its path, but the Hybrid RRTPRM algorithm had fewer nodes in its roadmap resulting in shorter runtimes. The Hybrid RRTPRM also outputted shorter paths making it more effective than the PRM. In addition, both these planners are multiquery methods, so their roadmaps could be reutilized. The PRM method does not discard points that are found inside obstacles, and part of its roadmap could become entrapped. The Hybrid RRTPRM, on the other hand, discards points within obstacles thereby reducing the number of nodes in the roadmap and shortening the runtime.
V. ACKNOWLEDGMENT
The author would like to thank the SMART Scholarship program, the FAMUFSU College of Engineering Dean’s Fellowship program, and the Electrical and Computer Engineering Department for their support.
:
This paper introduced and evaluated the performance of a new type of multiquery samplingbased path planner, the Hybrid RRTPRM method that integrates the RRT and PRM techniques. The goal of this novel algorithm is to improve the performance by decreasing the path length. Experiments were conducted to compare the efficacy of the Hybrid RRTPRM method with the RRT and PRM planners. The performance metrics that were recorded were the path length, the runtime, the number of nodes in the path, the number of nodes in the roadmap or search tree, and the number of iterations needed to output a route. Results showed that the Hybrid RRTPRM technique is more effective than the other two methods because it yielded shorter path lengths since it only searched for paths in the convex hull region that was a subset of the search area. The Hybrid RRTPRM planner is also a multiquery method, and its roadmap could be reapplied to output routes for different sets of beginning and end points. Future research will entail developing and evaluating new variations of the Hybrid RRTPRM algorithm to include the Hybrid RRT*PRM* and the Hybrid Informed RRT*PRM* techniques.
